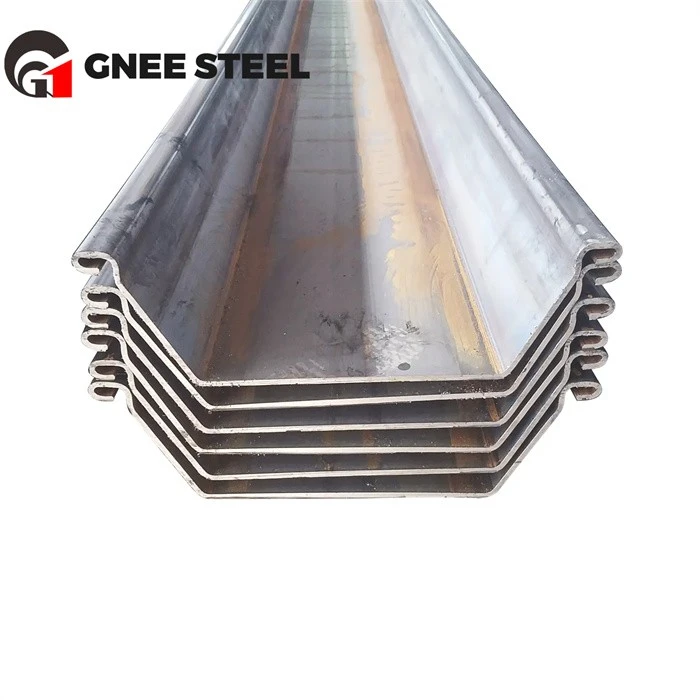

310mm U Tip Sheet Pile
U-pile tal-folji tal-azzar tat-tip għandu firxa wiesgħa ta 'użi, fil-bini tal-istruttura permanenti, jista' jintuża għal moll, tarzna tal-ħatt, berm tal-moll, ħajt ta 'żamma, ħajt ta' żamma, breakwater, moll ta 'devjazzjoni, baċir, gate, eċċ.; fl-istrutturi temporanji, jista 'jintuża għall-għeluq tal-għoljiet, espansjoni temporanja tal-bank, jaqta' l-fluss, jibnu cofferdams pontijiet, pipeline fuq skala kbira li jpoġġi tħaffir ta 'trinek temporanju li jżomm il-ħamrija, ilma, ramel u l-bqija; fil-kontroll tal-għargħar, jista 'jintuża għall-kontroll tal-għargħar, anti-sussidenza, anti-ramel fluwidu eċċ.
u sheet pile Deskrizzjoni tal-Prodotti
| Grad | Q195/Q235/Q275/Q345/eċċ | Standard | AiSi, ASTM, Bs, DIN, GB, JIS |
|---|---|---|---|
| Tolleranza | ±1% | Servizz ta' Ipproċessar | Liwi, Iwweldjar, Decoiling, Punching, Qtugħ |
| Liga Jew Le | Mhux-Liga | Fatturazzjoni | Skont il-Piż Teoretiku |
| Ħin ta' Kunsinna | Fi żmien 7 Ijiem | Isem tal-Prodott | Steel Sheet Pile |
| Teknika | Hot Rolled Cold Rolled | Tul | Customzied |
| Tip | Sheet Pile UZ | Applikazzjoni | Kostruzzjoni tal-Bini |
| Materjal | Q235/Q235B/Q345/Q345B/SS400/eċċ | Vantaġġ | Spejjeż baxxi |
| Kelma Ewlenija | Sheet Pile | Port | Tianjin Shanghai Qingdao eċċ |
daqsijiet u tip sheet pile
| Taqsima | Dimensjonijiet | Quddiesa | Mument ta 'inerzja | Modulu tas-sezzjoni | ||||
| Wisa' | Għoli | Ħxuna | Kull munzell | Ħajt | ||||
| w | h | t | s | |||||
| mm | mm | mm | mm | kg/m | kg/m2 | ċm4/m | ċm3/m | |
| 750mm wiesgħa | ||||||||
| GHU 14 | 750 | 408 | 10.0 | 8.3 | 77.9 | 104 | 28 690 | 1 415 |
| GHU 16 | 750 | 411 | 11.5 | 9.3 | 86.3 | 115 | 32 860 | 1 610 |
| GHU 18 | 750 | 441 | 10.5 | 9.1 | 88.5 | 118 | 39 310 | 1 790 |
| GHU 20 | 750 | 444 | 12.0 | 10.0 | 96.9 | 129 | 44 450 | 2 010 |
| GHU 23 | 750 | 447 | 13.0 | 9.5 | 102.1 | 136 | 50 710 | 2 280 |
| GHU 25 | 750 | 450 | 14.5 | 10.2 | 110.4 | 147 | 56 250 | 2 510 |
| 600mm wiesgħa | ||||||||
| GHU 12 | 600 | 360 | 9.8 | 9.0 | 66.1 | 110 | 21 610 | 1 210 |
| GHU 12S | 600 | 360 | 10.0 | 10.0 | 71.0 | 118 | 22 670 | 1 270 |
| GHU 18-1 | 600 | 430 | 10.2 | 8.4 | 72.6 | 121 | 35 960 | 1 680 |
| GHU 18 | 600 | 430 | 11.2 | 9.0 | 76.9 | 128 | 38 660 | 1 810 |
| GHU 18+1 | 600 | 430 | 12.2 | 9.5 | 81.1 | 135 | 41 330 | 1 930 |
| GHU 22-1 | 600 | 450 | 11.1 | 9.0 | 81.9 | 137 | 46 390 | 2 070 |
| GHU 22 | 600 | 450 | 12.1 | 9.5 | 86.1 | 144 | 49 470 | 2 210 |
| GHU 22+1 | 600 | 450 | 13.1 | 10.0 | 90.4 | 151 | 52 520 | 2 345 |
| GHU 28-1 | 600 | 452 | 14.2 | 9.7 | 97.4 | 162 | 60 590 | 2 690 |
| GHU 28 | 600 | 454 | 15.2 | 10.1 | 101.8 | 170 | 64 470 | 2 850 |
| GHU 28+1 | 600 | 456 | 16.2 | 10.5 | 106.2 | 177 | 68 390 | 3 010 |
| GHU 32-1 | 600 | 452 | 18.5 | 10.6 | 109.9 | 183 | 69 220 | 3 075 |
| GHU 32 | 600 | 452 | 19.5 | 11.0 | 114.1 | 190 | 72 330 | 3 210 |
| GHU 32+1 | 600 | 452 | 20.5 | 11.4 | 118.4 | 197 | 75 410 | 3 350 |
| 600mm u 400mm wiesgħa | ||||||||
| GHU 6N | 600 | 309 | 6.0 | 6.0 | 41.9 | 70 | 9 680 | 635 |
| GHU 7N | 600 | 310 | 6.5 | 6.4 | 44.1 | 74 | 10 460 | 685 |
| GHU 7S | 600 | 311 | 7.2 | 6.9 | 46.3 | 77 | 11 550 | 750 |
| GHU 7HWS | 600 | 312 | 7.3 | 6.9 | 47.4 | 79 | 11 630 | 755 |
| GHU 8N | 600 | 312 | 7.5 | 7.1 | 48.5 | 81 | 12 020 | 780 |
| GHU 8S | 600 | 313 | 8.0 | 7.5 | 50.8 | 85 | 12 810 | 830 |
| GHU 10N | 600 | 316 | 9.0 | 6.8 | 55.8 | 93 | 15 710 | 1000 |
| GHU 11N | 600 | 318 | 10.0 | 7.4 | 60.2 | 100 | 17 460 | 1 105 |
| GHU 12N | 600 | 320 | 11.0 | 8.0 | 64.6 | 108 | 19 230 | 1 230 |
| GHU 13N | 600 | 418 | 9.0 | 7.4 | 59.9 | 100 | 26 600 | 1 280 |
| GHU 14N | 600 | 420 | 10.0 | 8.0 | 64.3 | 107 | 29 420 | 1 410 |
| GHU 15N | 600 | 422 | 11.0 | 8.6 | 68.7 | 115 | 32 270 | 1 540 |
| GHU 16N | 600 | 430 | 10.2 | 8.4 | 72.6 | 121 | 35 960 | 1 680 |
| GHU 18N | 600 | 430 | 11.2 | 9.0 | 76.9 | 128 | 38 660 | 1 810 |
| GHU 20N | 600 | 430 | 12.2 | 9.5 | 81.1 | 135 | 41 310 | 1 930 |
| GHU 21N | 600 | 450 | 11.1 | 9.0 | 81.9 | 137 | 46 390 | 2 070 |
| GHU 22N | 600 | 450 | 12.1 | 9.5 | 86.1 | 144 | 49 470 | 2 210 |
| GHU 23N | 600 | 450 | 13.1 | 10.0 | 90.4 | 151 | 52 520 | 2 345 |
| GHU 27N | 600 | 452 | 14.2 | 9.7 | 97.4 | 162 | 60 590 | 2 690 |
| GHU 28N | 600 | 454 | 15.2 | 10.1 | 101.8 | 170 | 64 470 | 2 850 |
| GHU 30N | 600 | 456 | 16.2 | 10.5 | 106.2 | 177 | 68 390 | 3 010 |
| GHU 31N | 600 | 452 | 18.5 | 10.6 | 109.9 | 183 | 69 220 | 3 075 |
| GHU 32N | 600 | 452 | 19.5 | 11.0 | 114.1 | 190 | 72 330 | 3 210 |
| GHU 33N | 600 | 452 | 20.5 | 11.4 | 118.4 | 197 | 75 420 | 3 350 |
| GHU 16-400 | 400 | 290 | 12.7 | 9.4 | 62.0 | 155 | 22 600 | 1 570 |
| GHU 18-400 | 400 | 292 | 15.0 | 9.7 | 69.3 | 173 | 26 100 | 1 795 |
u forma ta 'folja tal-azzar pile Prodotti immaġni
Munzelli tal-folji tal-azzar f'forma ta' U-huma folji tal-azzar f'forma ta' U-imqassma fuq iż-żewġ naħat biex jiffurmaw ħajt kontinwu b'linja ċentrali fin-nofs tal-ħajt tas-sezzjoni U-doppja. u -forma ta 'munzelli tal-folji tal-azzar huma aktar stabbli minn kwalunkwe forma oħra ta' munzelli tal-folji tal-azzar, sabiex ikunu jistgħu jintużaw kemm għal xogħol permanenti kif ukoll għal xogħol temporanju.
Ritratt tat-tim tal-grupp GNEE
Żjara tal-klijenti tal-grupp GNEE
GNEE Group jipparteċipa f'wirjiet ta 'azzar barranin
Għandna biżżejjed 310mm U Tip Sheet Pile fl-istokk, u nistgħu wkoll nippersonalizzawh skont il-bżonnijiet tiegħek.
