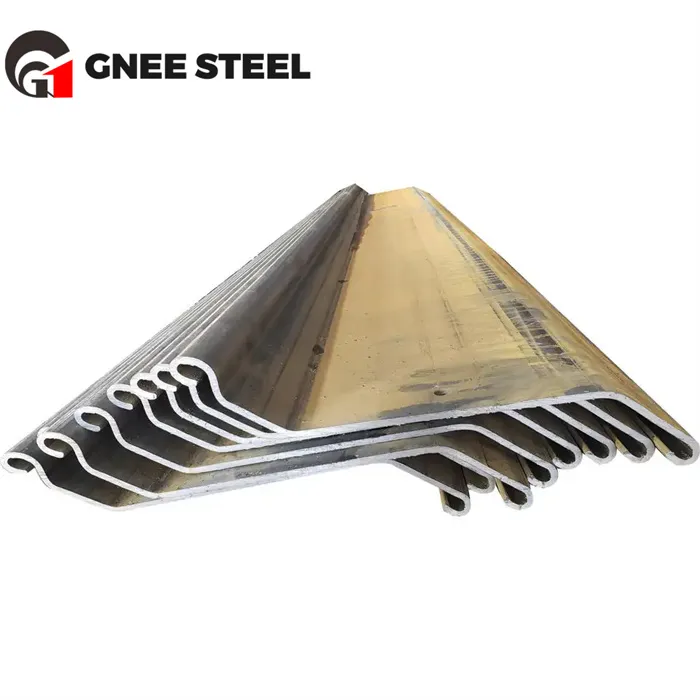

Z tal-folja tas-sezzjoni tal-munzell

Z - Tip tal-folja tal-azzar hija struttura użata komunement b'forma unika u prestazzjoni eċċellenti.Z - tip ta 'folja tal-azzar huwa kkaratterizzat minn saħħa għolja, stabbiltà tajba, kostruzzjoni konvenjenti, durabilità u protezzjoni ambjentali, li hija użata ħafna fl-oqsma ta' inġinerija ċivili, inġinerija ta 'konservazzjoni tal-ilma, inġinerija tal-kostruzzjoni u inġinerija tal-pont.

Z Daqsijiet tal-Pil tal-Folja tat-Tip Z

	wisa ' (w)	għoli (h)	flanġ (TF)	Web (TW)	Żona Cross Sec (A)	piż	Żona tal-Kisi	Żona Cross Sec (A)	piż	mument ta 'inerzja (ly)	modulu elastiku (Sx)	Modulu tal-plastik (Sx)	Mument tal-Benging (Max)	mument liwi (Max)
	mm	mm	mm	mm	cm²	kg / m	m²/m	cm² / m	kg / cm²	cm⁴/m	cm³/m	cm³/m	kn - m / m	kn - m / m
Taqsima	(IN)	(IN)	(IN)	(IN)	fi²	lbs / ft	ft²/ ft	fi²/ ft	lbs / ft²	fi⁴/ ft	fi³/ ft	fi³/ ft	kip - ft / ft	kip - ft / ft
HRZ12-770	770	343.5	8.6	8.5	92.99	72.8	1.96	120.8	94.5	21496	1252	1488	518	561
HRZ12-770	30.31	13.52	0.339	0.335	14.41	48.92	6.44	5.71	19.37	157.4	23.3	23.3	116.4	126.1
HRZ13-770	770	344	9.1	9	97.4	76.2	1.96	126.5	99	22433	1304	1551	540	585
HRZ13-770	30.31	13.54	0.358	0.354	15.1	51.22	6.44	5.98	20.28	164.3	24.3	24.3	121.3	131.4
HRZ14-770	770	344.5	9.6	9.5	101.8	79.6	1.96	132.2	103.4	23370	1357	1613	561	608
HRZ14-770	30.31	13.56	0.378	0.375	15.78	53.52	6.44	6.25	21.19	171.1	25.2	25.2	126.2	136.7
HRZ12-700	700	314.2	8.6	8.5	86.47	67.9	1.82	123.5	97	18971	1208	1418	500	541
HRZ12-700	27.56	12.37	0.339	0.335	13.4	45.62	5.97	5.84	19.86	138.9	22.5	26.4	112.3	121.7
HRZ13-700	700	315.2	9.6	9.5	94.47	74.2	1.82	135	105.9	20611	1308	1543	541	586
HRZ13-700	27.56	12.41	0.378	0.374	14.46	49.84	5.97	6.38	21.7	150.9	24.3	28.7	121.7	131.8
HRZ14-700	700	316.2	10.6	10.5	102.5	80.5	1.82	146.4	114.9	22262	1408	1669	582	631
HRZ14-700	27.56	12.45	0.417	0.413	15.89	54.07	5.97	6.92	23.54	163	26.2	31	131	141.9
HRZ17-700	700	420	8.5	8.4	92.99	73.3	1.97	132.8	104.7	36425	1735	2032	717	777
HRZ17-700	27.56	16.54	0.335	0.331	14.41	49.26	6.47	6.28	22.46	266.7	32.3	37.8	168.1	174.7
HRZ18-700	700	420.5	9.1	9	97.4	76.7	1.97	139.1	109.6	38001	1807	2132	748	810
HRZ18-700	27.56	16.56	0.358	0.354	15.1	51.58	6.47	6.57	22.46	278.3	33.6	39.8	168.1	182.1
HRZ19-700	700	421	9.6	9.5	101.8	80.2	1.97	145.4	114.6	39578	1880	2210	778	843
HRZ19-700	27.56	16.57	0.378	0.375	15.78	53.9	6.47	6.87	23.47	289.8	35	41.2	174.9	189.4
HRZ20-700	700	421.5	10.1	10	106.2	83.7	1.97	151.7	119.5	41155	1953	2304	808	875
HRZ20-700	27.56	16.59	0.398	0.394	16.46	56.22	6.47	7.17	24.48	301.4	36.3	42.9	181.6	196.7
HRZ24-700	700	459.2	11.3	11.2	122.06	95.8	2.05	174.4	136.9	55949	2437	2875	1008	1092
HRZ24-700	27.56	18.08	0.445	0.441	18.92	64.39	6.71	8.24	28.04	409.7	45.3	53.7	226.7	245.5
HRZ26-700	700	460.2	12.3	12.2	131.18	103	2.05	187.4	147.1	59843	2601	3071	1076	1166
HRZ26-700	27.56	18.12	0.484	0.48	20.33	69.21	6.72	8.85	30.13	438.2	48.4	57.1	241.9	262.1
HRZ27-700	700	460.7	12.8	12.7	135.5	106.4	2.05	193.6	152	61641	2676	3089	1107	1199
HRZ27-700	27.56	18.14	0.504	0.5	21	71.48	6.72	9.14	31.12	451.4	49.8	57.5	248.9	269.6
HRZ28-700	700	461.2	13.3	13.2	140.3	110.1	2.05	200.4	157.3	63740	2764	3278	1144	1239
HRZ28-700	27.56	18.16	0.524	0.52	21.75	74.02	6.72	9.47	32.23	466.8	51.4	61	257.1	278.5
HRZ36-700	700	499.2	15.1	11.2	151.27	118.7	2.18	216.1	169.6	89753	3596	4151	1488	1612
HRZ36-700	27.56	19.65	0.594	0.441	23.45	79.8	7.14	10.21	34.75	657.2	66.9	77.3	334.5	362.3
HRZ38-700	700	500.2	16.1	12.2	161.16	126.5	2.18	230.2	180.7	94984	3798	4363	1571	1702
HRZ38-700	27.56	19.69	0.634	0.48	24.98	85.02	7.14	10.88	37.02	695.6	70.6	81.2	353.2	382.6
HRZ40-700	700	501.2	17.1	13.2	171.06	134.3	2.18	244.4	191.8	100219	3999	4610	1655	1792
HRZ40-700	27.56	19.73	0.673	0.52	26.51	90.24	7.15	11.54	39.29	733.9	74.4	85.8	372	402.9
HRZ42-700	700	499.2	18.1	14	182.12	143	2.17	260.2	204.2	105543	4228	4882	1749	1895
HRZ42-700	27.56	19.65	0.713	0.551	28.23	96.08	7.11	12.29	41.83	772.9	78.7	90.9	393.3	426
HRZ44-700	700	500.2	19.1	15	192.02	150.7	2.17	274.3	215.3	110942	4436	5096	1835	1988
HRZ44-700	27.56	19.69	0.752	0.591	29.76	101.3	7.11	12.96	44.11	812.4	82.5	94.8	412.6	446.9
HRZ46-700	700	501.2	20.1	16	201.93	158.5	2.17	288.5	226.5	116159	4635	5343	1918	2077
HRZ46-700	27.56	19.73	0.791	0.63	31.3	106.53	7.11	13.63	46.38	850.6	86.2	99.4	431.1	467
HRZ48-700	700	503.2	22.1	15	202.99	159.3	2.17	290	227.6	120467	4788	5528	1981	2146
HRZ48-700	27.56	19.81	0.87	0.591	31.46	107.09	7.11	13.7	46.63	882.2	89.1	102.9	445.3	482.4
HRZ50-700	700	504.2	23.1	16	212.41	166.7	2.17	303.4	238.2	125358	4973	5713	2057	2229
HRZ50-700	27.56	19.85	0.909	0.63	32.92	112.06	7.11	14.34	48.79	918	92.5	106.3	462.5	501
HRZ52-700	700	505.2	24.1	17	222.07	174.3	2.17	317.2	249	130403	5162	5951	2136	2314
HRZ52-700	27.56	19.89	0.949	0.669	34.42	117.15	7.11	14.99	51.01	954.9	96	110.7	480.2	520.2
HRZ48-580	580	482	19.2	15.1	178.17	139.9	2.01	307.2	241.1	115712	4801	5555	1986	2152
HRZ48-580	22.83	18.98	0.756	0.594	27.62	93.99	6.59	14.52	49.4	847.3	89.3	103.3	446.6	483.8

Z Applikazzjoni tal-Pile tal-Folja

2. Proġett tal-Konservazzjoni tal-Ilma: Z - Punzji tat-tip tal-azzar jistgħu jintużaw fi proġetti ta 'konservazzjoni tal-ilma bħat-taħriġ tax-xmajjar, diga tal-kontroll tal-għargħar, kontroll tal-qsim tal-ġibjun, eċċ., Li hija kkaratterizzata minn reżistenza qawwija għall-pressjoni tal-ilma.

3. Proġett ta 'Kostruzzjoni: Z - Tip ta' l-azzar tal-pile jista 'jintuża fi proġetti ta' kostruzzjoni bħal fondazzjoni ta 'appoġġ, garaxx taħt l-art, pipeline taħt l-art, eċċ. Jista' jipprovdi appoġġ stabbli tal-fondazzjoni.

4. Proġett tal-pont: z - tip ta 'folja tal-azzar jista' jintuża fil-pont tal-fondazzjoni, abutment tal-pont, pont tal-pont u proġetti oħra tal-pont, b'kapaċità tajba tal-ġarr u prestazzjoni sismika.
